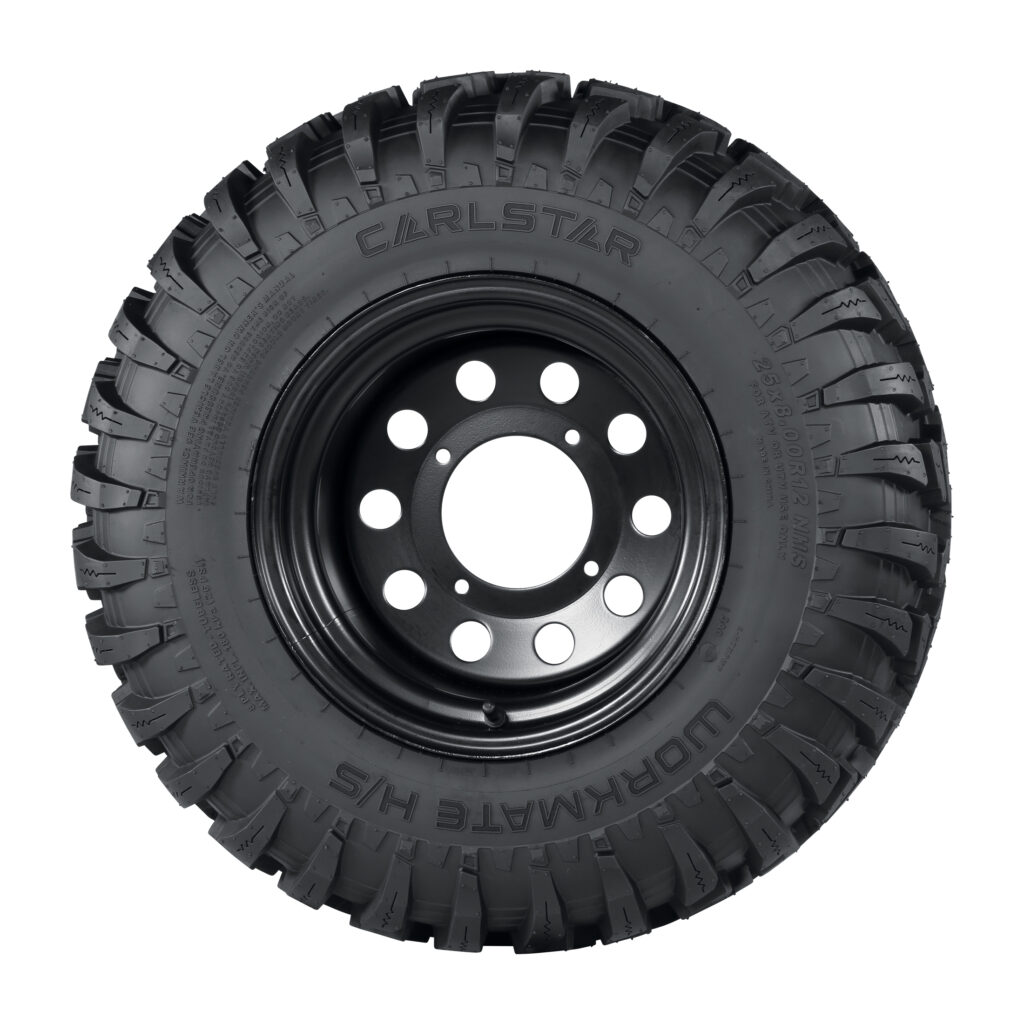

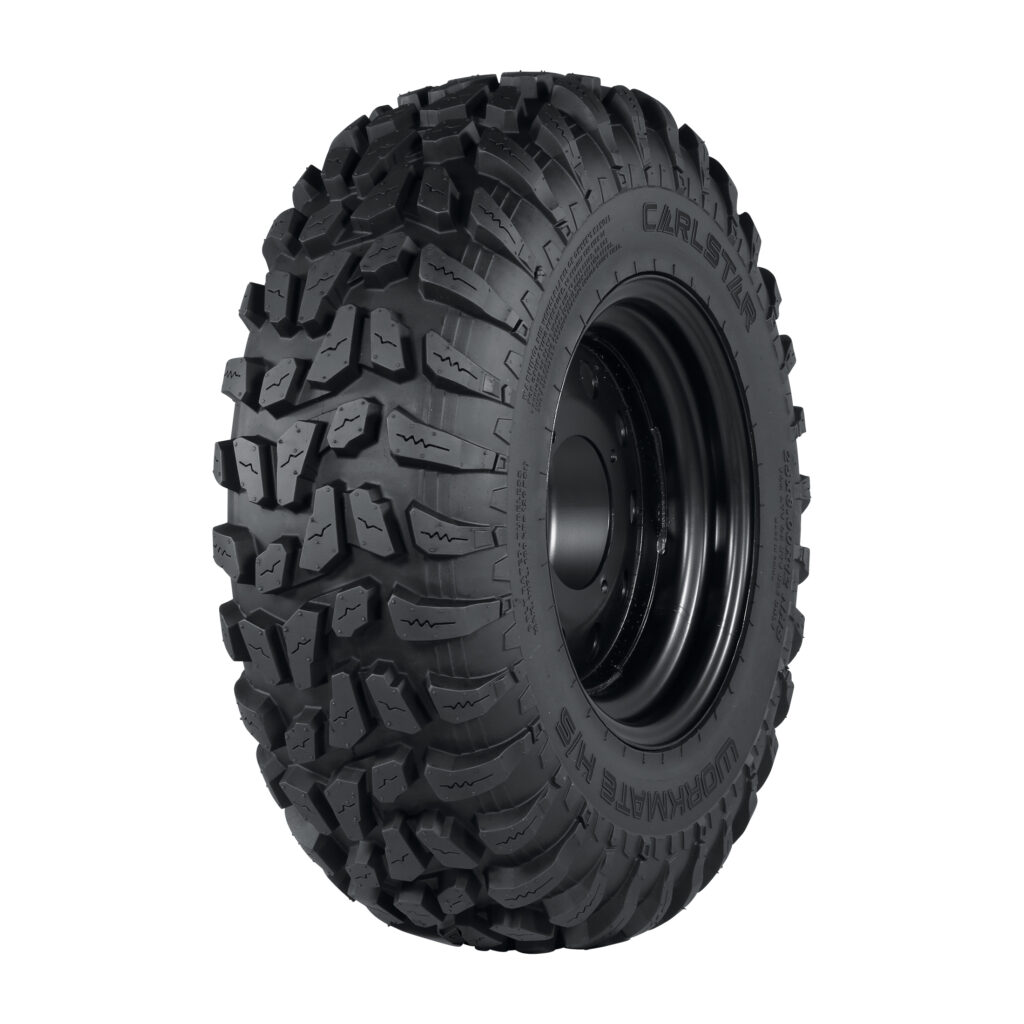

Workmate H/S

Best used for

UTV

The Workmate H/S is designed for intermediate to hard surfaces including
concrete, asphalt, and gravel that might be encountered
in commercial, industrial, and municipal applications.

Flatter center profile for enhanced stability
Rounded shoulder design improves steering response

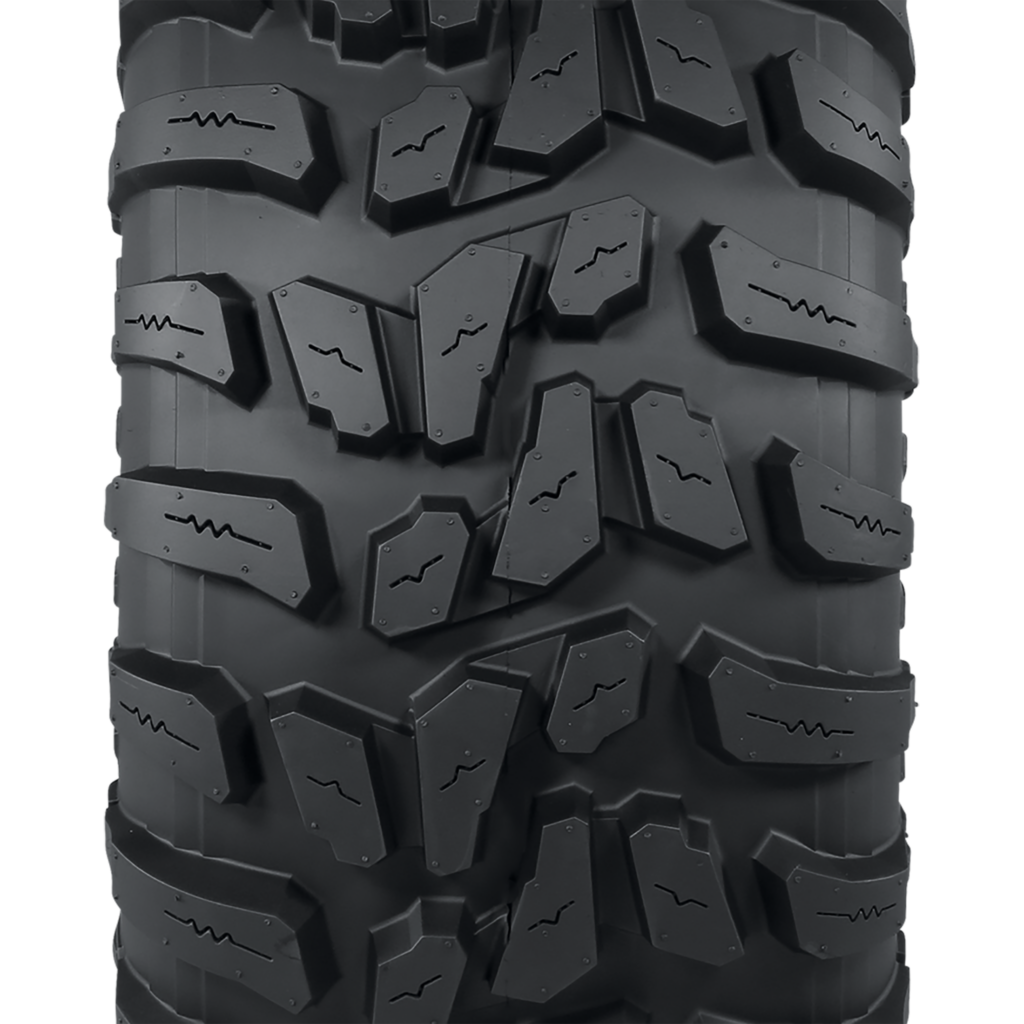

Multi pitch design with siping promotes a quieter ride on hard surfaces

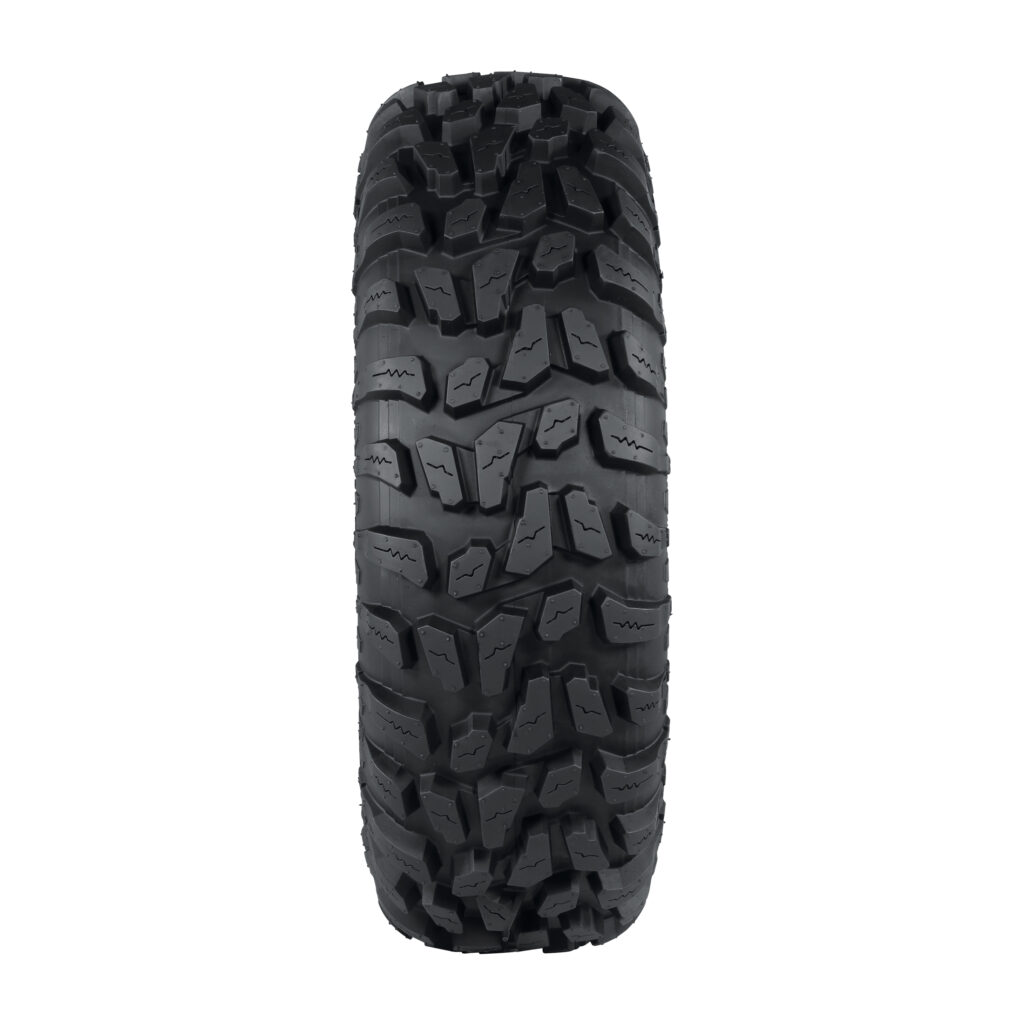

Non-directional tread pattern with shoulder steps guarantees traction in multiple, dry, loose, and wet conditions
Reinforced belts increase puncture resistance in the vulnerable tread area
8-ply rated radial construction provides a comfortable ride, inspires confidence in harsh conditions, and stability under heavy payloads

Technical Specifications

SKU	Size	Ply	Mounted diameter (in)	Mounted width (in)	Rim Width (in)	Rated load (lb)	Rated Speed (lb)	PSI	Tread Depth	Weight (lb)
6P20151	25x8.00R12	8	25	7.8	6	330	87	26	21 /32	23.2
6P20141	25X10.00R12	8	25.1	9.6	8	410	87	26	22 /32	29.5
6P20521	27X9.00R14	8	27.5	8.7	7	1050	50	26	21 /32	28.1
6P20531	27X11.00R14	8	27.7	10.6	9	1280	50	26	22 /32	32.8
6P20561	26X9.00R12	8	26.2	8.9	7	1025	50	26	21 /32	30.6
6P20571	26X11.00R12	8	26.3	11.1	9	1225	50	26	22 /32	37
6P20541	26X9.00R14	8	26.3	8.8	7	985	50	26	21 /32	29.4
6P20551	26X11.00R14	8	26.7	10.7	9	1195	50	26	22 /32	31.2

SKU	Size	Ply	Mounted diameter (mm)	Mounted width (mm)	PSI	Tread Depth
6P20151	25x8.00R12	8	635	198.1	26	21 /32
6P20141	25X10.00R12	8	637.5	198.1	26	22 /32
6P20521	27X9.00R14	8	693.4	221	26	21 /32
6P20531	27X11.00R14	8	701	269.2	26	22 /32
6P20561	26X9.00R12	8	662.9	228.6	26	21 /32
6P20571	26X11.00R12	8	668	279.4	26	22 /32
6P20541	26X9.00R14	8	668	223.5	26	21 /32
6P20551	26X11.00R14	8	673.1	266.7	26	22 /32
