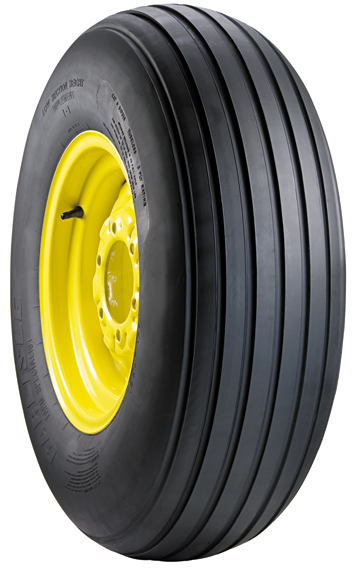

Carlisle Farm Specialist® I-1 Angled View

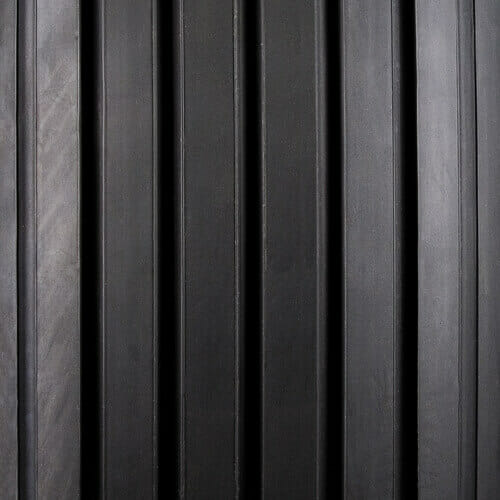

Carlisle Farm Specialist® Tread

Carlisle Farm Specialist® I-1 Angled View

Carlisle Farm Specialist® Tread

Farm Specialist® I-1

Best used for

Balers

Farm Implements

Feed Yard Mixers

Front Tractor

Seeders

Spreaders

Wagons

With its wide rib tread design, the Farm Specialist I-1 tire is perfect for flotation on farm implements and provides excellent lateral stability and rolling resistance. Made in the USA.

Product highlights:

Wide tread ribs excellent for lateral stability
Rolling resistant and soil flotation tread design
Premium tread compound

Technical Specifications

SKU	Size	Ply	Mounted width (in)	Mounted diameter (in)	Rim Width (in)	Rated load (lb)	Rolling Circumference (in)	PSI	Tube Type	Weight (lb)	Additional Information
510130	18L-16.1SL I-1	10	17	32.5	14	4180	95.2	32	Tubeless	71.8
510131	14L-16.1SL I-1	8	14.4	37	11	3520	108.5	28	Tubeless	69
510361	26x12.00-12NHS I-1	4	11.7	25.5	10.5	1780	75.7	20	Tubeless	27
510363	26x12.00-12NHS I-1	10	11.7	25.5	10.5	3110	75.7	52	Tubeless	28.9
518249	4-9 I-1	4	4.8	17.4	3	550	51.6	44	Tube Type	7
518277	4-12 I-1	4	5	20.4	3	675	60.5	44	Tube Type	8
51F218	11L-15SL I-1	8	11	30.6	8	2540	90.6	36	Tube Type	29
51F235	5.00-15SL I-1	4	5.4	25.2	4	950	74.7	36	Tube Type	12
51F237	7.60-15SL	8	7.9	28.7	5.5	2090	84.4	52	Tube Type	24
51F240	12.5L-15SL I-1	8	12.3	32.2	10	3000	95.3	36	Tube Type	43
51F241	12.5L-15SL I-1	10	12.4	32.2	10	3420	95.3	44	Tube Type	43
51F244	9.5L-15SL I-1	8	9.2	29.9	7	2470	88.5	44	Tube Type	27
51F252	5.90-15SL I-1	4	6.3	26.3	4.5	1140	77.9	36	Tube Type	13.5
51F299	9.5L-14SL I-1	8	9.2	29.4	7	2400	87	44	Tube Type	26
51F305	12.5L-15SL I-1	12	12.1	32.6	10	3860	96.5	52	Tubeless	58
51F317	11L-15SL I-1	12	10.7	30.6	8	3200	90.6	52	Tubeless	41
51F318	11L-15SL I-1	8	10.9	30.6	8	2540	90	36	Tubeless	33
51F337	7.60-15SL I-1	8	7.9	28.7	5.5	2090	85	52	Tubeless	27.9
51F340	12.5L-15SL I-1	8	12.3	32.2	10	3000	95.3	36	Tubeless	43
51F341	12.5L-15SL I-1	10	12.4	32.2	10	3420	95.3	44	Tubeless	43
51F344	9.5L-15SL I-1	8	9	29.9	7	2470	88.1	44	Tubeless	28
51F350	16.5L-16.1SL	10	17.1	40.8	14	5200	117.5	36	Tubeless	101
51F353	12.5L-16SL I-1	14	12.5	33.4	10	4180	99	56	Tubeless	53.5
51F367	6.70-15SL	4	7.1	27.7	4.5	1280	81.5	32	Tubeless	19
51F385	10.00-15SL I-1	8	11.4	33.6	8	3200	98.6	40	Tubeless	45.6
51F388	6.70-15SL I-1	6	7.2	28.2	4.5	1610	83.7	44	Tubeless	19.2
51F391	11L-14SL I-1	8	10.6	29.6	8	2470	87.7	36	Tubeless	32.5
51F399	9.5L-14SL I-1	8	9.2	29.4	7	2400	87	44	Tubeless	29.7
51F3D7	9.5L-15SL I-1	12	8.8	29.9	7	3200	88.5	64	Tubeless	30
560474	26x12.00-12NHS I-1	12	11.7	25.5	10.5	3460	75.7	62	Tubeless	34
6A0086	32x15.5x16.5SL	14	15.6	32.2	12	5840	97.4	90	Tubeless	87.3
6A0340	14L-16.1SL I-1	14	14.2	37.1	11	5200	108.5	52	Tubeless	77.7
6A0434	21.5L-16.1SL I-1	10		32X15.5		6600		28	Tubeless	146
6A0437	19L-16.1SL	12	18.8	42.4	16	6600	124	36	Tubeless	131
6A0438	19L-16.1SL	10	18.8	42.4	16	6000	124	32	Tubeless	131
6A0332	14L-16.1SL I-1	12	14.2	37.1	11	4680	108.5	44	Tubeless	78
6A0477	16.5-16.1SL I-1	14	17.1	40.7	14	6400	117.5	48	Tubeless	128
510135	21.5L-16.1SL I-1	10	21.5	44.5	18	6600	132.1	28	Tubeless	114
510137	19L-16.1SL I-1	12	19	42.4	16	6600	125.8	36	Tubeless	110
51F3181	11L-15SL	8	11.6	31.1	8	2540	92	36	Tubeless	33.3

SKU	Size	Ply	Mounted width (mm)	Mounted diameter (mm)	Rim width (mm)	Rated load (kg)	Rolling Circumference (mm)	PSI	Tube Type	Weight (kg)	Additional Information
510130	18L-16.1SL I-1	10	431.8	825.5	355.6	1896	2418.1	32	Tubeless	32.6
510131	14L-16.1SL I-1	8	365	940.8	279.4	1596.6	2755.9	28	Tubeless	31
510361	26x12.00-12NHS I-1	4	297.2	647.7	266.7	807.4	1922.8	20	Tubeless	13
510363	26x12.00-12NHS I-1	10	297.2	647.7	266.7	1410.7	1922.8	52	Tubeless	13.1
518249	4-9 I-1	4	121.9	442	76.2	249.5	1310.6	44	Tube Type	3
518277	4-12 I-1	4	127	518.2	76.2	306.2	1536.7	44	Tube Type	4
51F218	11L-15SL I-1	8	279.4	777.2	203.2	1152.1	2301.2	36	Tube Type	13
51F235	5.00-15SL I-1	4	137.2	640.1	101.6	430.9	1897.4	36	Tube Type	5.4
51F237	7.60-15SL	8	200.7	729	139.7	948	2143.8	52	Tube Type	11
51F240	12.5L-15SL I-1	8	312.4	817.9	254	1360.8	2420.6	36	Tube Type	20
51F241	12.5L-15SL I-1	10	315	817.9	254	1551.3	2420.6	44	Tube Type	20
51F244	9.5L-15SL I-1	8	233.7	759.5	177.8	1120.4	2247.9	44	Tube Type	12
51F252	5.90-15SL I-1	4	160	668	114.3	517.1	1978.7	36	Tube Type	6.1
51F299	9.5L-14SL I-1	8	233.7	746.8	177.8	1088.6	2209.8	44	Tube Type	12
51F305	12.5L-15SL I-1	12	307.3	828	254	1750.9	2451.1	52	Tubeless	27
51F317	11L-15SL I-1	12	271.8	777.2	203.2	1451.5	2301.2	52	Tubeless	19
51F318	11L-15SL I-1	8	276.9	777.2	203.2	1152.1	2286	36	Tubeless	15
51F337	7.60-15SL I-1	8	200.7	729	139.7	948	2159	52	Tubeless	12.7
51F340	12.5L-15SL I-1	8	312.4	817.9	254	1360.8	2420.6	36	Tubeless	20
51F341	12.5L-15SL I-1	10	315	817.9	254	1551.3	2420.6	44	Tubeless	20
51F344	9.5L-15SL I-1	8	228.6	759.5	177.8	1120.4	2237.7	44	Tubeless	13
51F350	16.5L-16.1SL	10	434.3	1036.3	355.6	2358.7	2984.5	36	Tubeless	45.8
51F353	12.5L-16SL I-1	14	317.5	848.4	254	1896	2514.6	56	Tubeless	24.3
51F367	6.70-15SL	4	180.3	703.6	114.3	580.6	2070.1	32	Tubeless	9
51F385	10.00-15SL I-1	8	289.6	853.4	203.2	1451.5	2504.4	40	Tubeless	20.7
51F388	6.70-15SL I-1	6	182.9	716.3	114.3	730.3	2126	44	Tubeless	8.7
51F391	11L-14SL I-1	8	269.2	751.8	203.2	1120.4	2227.6	36	Tubeless	14.7
51F399	9.5L-14SL I-1	8	233.7	746.8	177.8	1088.6	2209.8	44	Tubeless	13.5
51F3D7	9.5L-15SL I-1	12	223.5	759.5	177.8	1451.5	2247.9	64	Tubeless	14
560474	26x12.00-12NHS I-1	12	297.2	647.7	266.7	1569.4	1922.8	62	Tubeless	15
6A0086	32x15.5x16.5SL	14	396.2	816.6	304.8	2649	2474	90	Tubeless	39.6
6A0340	14L-16.1SL I-1	14	359.4	943.1	279.4	2358.7	2755.9	52	Tubeless	35.2
6A0434	21.5L-16.1SL I-1	10	510.5	1125.2	406.4	2993.7	3182.6	28	Tubeless	67
6A0437	19L-16.1SL	12	476.3	1077	406.4	2993.7	3149.6	36	Tubeless	60
6A0438	19L-16.1SL	10	476.3	1077	406.4	2721.6	3149.6	32	Tubeless	60
6A0332	14L-16.1SL I-1	12	359.4	943.1	279.4	2122.8	2755.9	44	Tubeless	35
6A0477	16.5-16.1SL I-1	14	434.3	1033.8	355.6	2903	2984.5	48	Tubeless	58
510135	21.5L-16.1SL I-1	10	546.1	1130.3	457.2	2993.7	3354.2	28	Tubeless	51.7
510137	19L-16.1SL I-1	12	482.6	1077	406.4	2993.7	3195.9	36	Tubeless	49.9
51F3181	11L-15SL	8	294.6	789.9	203.2	1152.1	2336.8	36	Tubeless	15.1

*“AT” tires are Star Rated and are designed for ATV applications
