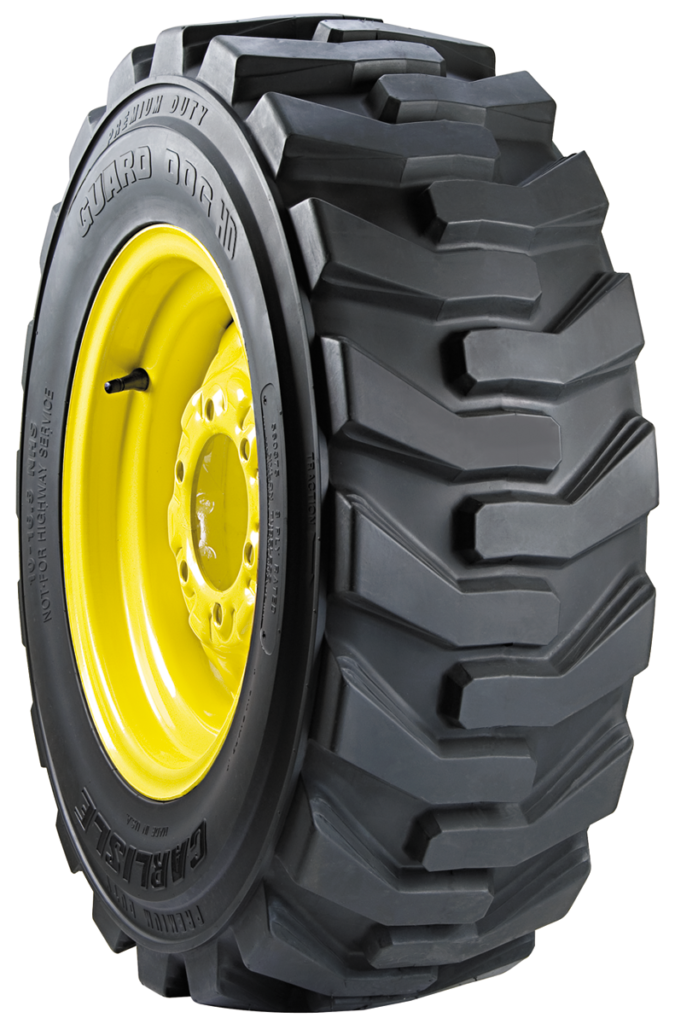

Designed for heavy-duty skid steers, the Guard Dog HD tire has premium tread compounds for tougher service conditions and rigorous construction applications. With its stepped-off outer tread lugs and squared shoulder design, the Guard Dog HD delivers maximum performance and stability on the work site. Made in the USA.
Product highlights:
| SKU | Size | Ply | Mounted width (in) | Mounted diameter (in) | Rim Width (in) | Rated load (lb) | Rolling Circumference (in) | PSI | Tube Type | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 570130 | 10-16.5 | 10 | 10.3 | 30.9 | 8.3 | 4710 | 90.3 | 75 | Tubeless | 56.6 | |
| 570131 | 12-16.5 | 12 | 12.1 | 32.7 | 9.8 | 6320 | 95.6 | 80 | Tubeless | 84.8 | |
| 570031 | 33x15.50-16.5 | 12 | 14.4 | 32.8 | 12 | 6835 | 97.3 | 60 | Tubeless | 97 |
| SKU | Size | Ply | Mounted width (mm) | Mounted diameter (mm) | Rim width (mm) | Rated load (kg) | Rolling Circumference (mm) | PSI | Tube Type | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 570130 | 10-16.5 | 10 | 262.1 | 783.6 | 209.6 | 2136.4 | 2293.6 | 75 | Tubeless | 25.7 | |
| 570131 | 12-16.5 | 12 | 307.3 | 829.3 | 247.7 | 2866.7 | 2428.2 | 80 | Tubeless | 38.4 | |
| 570031 | 33x15.50-16.5 | 12 | 365.8 | 833.1 | 304.8 | 3100.3 | 2472.3 | 60 | Tubeless | 44 |
