FSTR

Heavy Duty | Large Tractor Applications

Home Products Agriculture/Construction FSTR

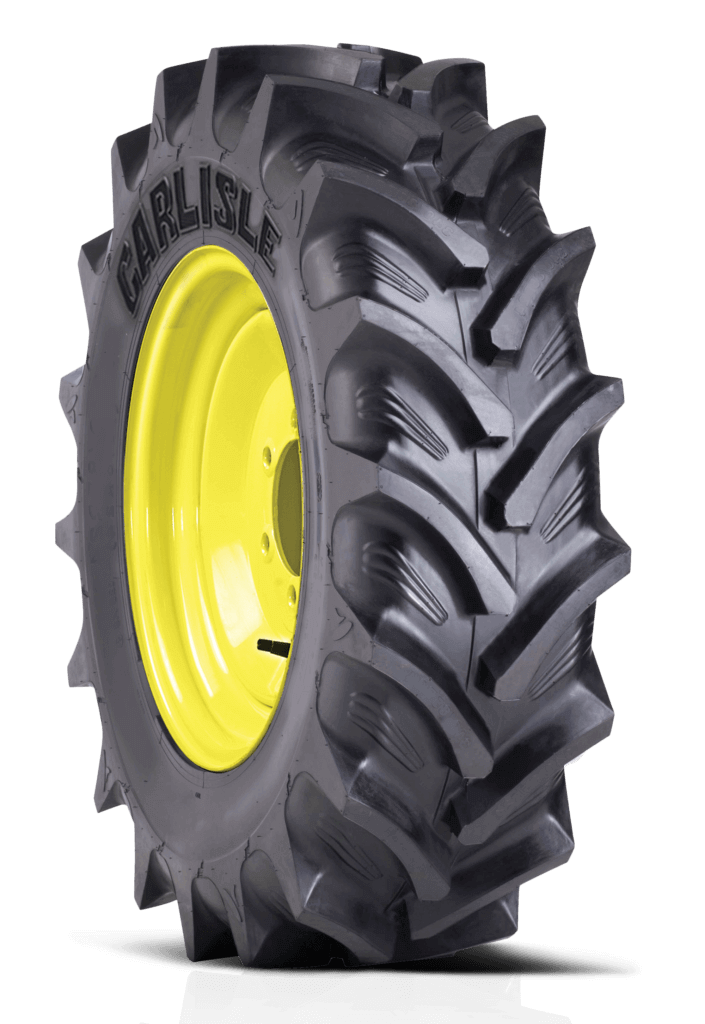

Carlisle FSTR Angled View

Carlisle FSTR Angled View

Carlisle FSTR Angled View

Carlisle FSTR Angled View

FSTR

Best used for

Large Tractor Applications

The FSTR is a line of R1-W radial tires with rim diameters ranging from a 16″ to 48″. The radial construction of these tires will deliver a combination of traction and smooth ride for farmers to increase their efficiency in the field.

Product highlights:

Larger footprint than bias construction for reduced soil compaction
Engineered compounds for longer service life

Technical Specifications

SKU	Size	Load Index	PSI	Rated load (lb)	Mounted width (in)	Mounted diameter (in)	Tube Type	Static Load Radius	Rolling Circumference (in)	Tread Depth	Weight (lb)	Additional Information
6A08322	480/70R26	139	23	5360	18.9	54.3	Tubeless	24.5	163	57 /32	236
6A07292	210/95R32	114	34	2600	8.5	47.8	Tubeless	21.6	144	39 /32	419.3
6A07322	210/95R44	120	34	3080	8.5	59.8	Tubeless	27.1	181	40 /32	130.4
6A07302	230/95R32	128	58	3960	9.1	49.4	Tubeless	22.3	149	40 /32	114.3
6A07332	230/95R44	132	58	4400	9.1	61.4	Tubeless	27.8	186	42 /32	143.5
6A07352	230/95R48	136	58	4940	9.1	65.4	Tubeless	29.6	198	45 /32	159.3
6A06802	240/70R16	104	34	1980	9.7	29.3	Tubeless	13.2	88	35 /32	47.2
6A06812	260/70R16	109	34	2270	10.2	30.3	Tubeless	13.6	91	37 /32	51.8
6A07312	270/95R32	136	58	4940	10.8	52.4	Tubeless	23.6	158	49 /32	143.1
6A06832	280/70R18	114	34	2600	11.1	33.4	Tubeless	15	100	40 /32	72
6A06822	280/70R16	112	34	2470	11.1	31.4	Tubeless	14	94	40 /32	64.7
6A06842	280/70R20	116	34	2760	11.1	35.4	Tubeless	15.9	106	43 /32	81.7
6A07052	280/85R20	112	23	2470	11.1	38.7	Tubeless	17.4	116	43 /32	90.7
6A05662	280/85R24	115	23	2680	11.1	42	Tubeless	19.2	128	49 /32	103.2
6A07122	280/85R28	118	23	2910	11.1	46.7	Tubeless	21.1	140	49 /32	118.6
6A06852	300/70R20	120	34	3080	11.6	37.5	Tubeless	16.8	112	44 /32	93.8
6A07342	300/95R46	148	58	6950	11.8	68.5	Tubeless	31	207	50 /32	208.8
6A06862	320/70R20	113	23	2540	12.6	38.7	Tubeless	17.3	116	43 /32	97.7
6A06882	320/70R24	116	23	2760	12.6	43.1	Tubeless	19.4	129	47 /32	116.4
6A07062	320/85R20	119	23	3000	12.6	41.4	Tubeless	18.5	124	44 /32	109.5
6A07082	320/85R24	122	23	3300	12.6	45.4	Tubeless	20.4	136	49 /32	129.3
6A07132	320/85R28	124	23	3520	12.6	49.4	Tubeless	22.2	148	52 /32	138.4
6A08362	320/90R46	146	46	6600	12.6	68.9	Tubeless	32.3	206.7	52 /32	229
6A07142	340/85R28	127	23	3860	13.5	50.8	Tubeless	22.8	152	53 /32	158.7
6A07222	340/85R36	132	23	4400	13.5	58.9	Tubeless	26.6	177	54 /32	195.4
6A07232	340/85R38	133	23	4540	13.5	60.8	Tubeless	27.5	183	54 /32	199
6A06872	360/70R20	129	34	4080	14.1	41	Tubeless	18.3	122	50 /32	125.2
6A06892	360/70R24	122	23	3300	14.1	45.4	Tubeless	20.3	136	52 /32	138.5
6A06932	360/70R28	125	23	3640	14.1	49.4	Tubeless	22.2	148	53 /32	155
6A06902	380/70R24	125	23	3640	15	46.9	Tubeless	21	140	55 /32	155.5
6A06942	380/70R28	127	23	3860	15	50.9	Tubeless	22.9	153	55 /32	168
6A07172	380/85R30	135	23	4800	15	55.4	Tubeless	24.9	166	55 /32	190.7
6A07242	380/85R38	139	23	5360	15	63.4	Tubeless	28.6	191	55 /32	234.5
6A06912	420/70R24	130	23	4180	16.5	49.1	Tubeless	22	147	54 /32	181.2
6A06952	420/70R28	133	23	4540	16.5	53.2	Tubeless	23.9	159	54 /32	201.7
6A06972	420/70R30	134	23	4680	16.5	55.1	Tubeless	24.8	165	55 /32	215.2
6A07112	420/85R24	137	23	5080	16.5	52.1	Tubeless	23.3	155	54 /32	213.8
6A05712	420/85R28	139	23	5360	16.5	56.1	Tubeless	25.1	168	58 /32	221.8
6A07252	420/85R38	144	23	6150	16.5	66.1	Tubeless	29.8	199	60 /32	290.1
6A06732	440/65R24	128	35	3960	17.5	46.7	Tubeless	20.9	139	50 /32	177.2
6A06752	440/65R28	131	35	4300	17.5	50.6	Tubeless	22.8	152	52 /32	199
6A06922	460/70R24	152	46	7850	18.1	49.6	Tubeless	22.2	148	47 /32	203.9
6A06742	480/65R24	133	35	4540	18.9	48.6	Tubeless	21.8	145	52 /32	202.9
6A06762	480/65R28	142	35	5840	18.9	52.6	Tubeless	23.7	158	52 /32	225
6A06962	480/70R28	141	23	5520	18.9	56.1	Tubeless	25.1	168	58 /32	251.4
6A06982	480/70R30	143	23	5680	18.9	58.3	Tubeless	26.2	174	55 /32	278.7
6A06992	480/70R34	145	23	6000	18.9	62.2	Tubeless	28	187	59 /32	311.8
6A07002	480/70R38	151	23	6400	18.9	66.3	Tubeless	29.9	199	62 /32	337.1
6A06562	480/80R42	164	23	7600	19.1	72.6	Tubeless	33.4	218	65 /32	394
6A08332	480/80R46	164	46	11000	19.1	76.6	Tubeless	35.4	229.7	66 /32	422
6A07012	520/70R38	150	23	7400	20.3	68.9	Tubeless	31	207	66 /32	391.3
6A05792	520/85R38	155	23	8550	20.3	72.8	Tubeless	32.7	218	69 /32	419.3
6A07282	520/85R42	157	23	9100	20.3	77	Tubeless	34.6	231	71 /32	478.2
6A06772	540/65R28	149	35	7150	21.7	55.9	Tubeless	25.1	167	57 /32	284
6A07022	580/70R38	155	23	8550	22.8	72.1	Tubeless	32.4	216	69 /32	458
6A06782	600/65R38	159	35	9650	23.4	68.9	Tubeless	31	207	58 /32	425.8
6A08132	600/70R30	158	34	9350	22.2	63.2	Tubeless	28.3	188	67 /32	425.3
6A07032	620/75R30	163	35	10700	24.8	66.7	Tubeless	29.8	198	73 /32	535.5
6A06792	650/65R38	163	34	10700	25.6	71.7	Tubeless	32.2	215	72 /32	561
6A07042	650/75R32	172	46	13900	25.6	70.7	Tubeless	74	210	74 /32	588.2
6A08142	710/70R38	171	34	13600	27.9	77.1	Tubeless	34.6	231	71 /32	672.7
6A08342	750/65R26	166	34	11700	29.7	64.6	Tubeless	28.6	193.7	63 /32	544

SKU	Size	Load Index	PSI	Rated load (kg)	Mounted width (mm)	Mounted diameter (mm)	Tube Type	Static Load Radius	Rolling Circumference (mm)	Tread Depth	Weight (kg)	Additional Information
6A08322	480/70R26		23	997.9	241.3	937.3	Tubeless	468.6	2819.4	33.3	32.4
6A07292	210/95R32		34	1179.3	214.9	1214.9	Tubeless	607.4	3657.6	31	44.3
6A06822	280/70R16		34	1120.4	281.9	797.6	Tubeless	398.8	2387.6	31.8	29.3
6A06832	280/70R18		34	2431.3	480.1	1379.2	Tubeless	689.6	4140.2	45.2	107
6A06842	280/70R20		34	1251.9	281.9	899.9	Tubeless	450	2692.4	34.1	37.1
6A07052	280/85R20		23	1120.4	281.9	984	Tubeless	492	2946.4	34.1	41.1
6A05662	280/85R24		23	1215.6	281.9	1066.8	Tubeless		3251.2	38.9	46.8
6A07122	280/85R28		23	1320	281.9	1186.9	Tubeless	593.5	3556	38.9	53.8
6A06852	300/70R20		34	1397.1	294.9	952	Tubeless	476	2844.8	34.9	42.5
6A07342	300/95R46		58	3152.5	299.7	1739.9	Tubeless	870	5257.8	39.7	94.7
6A06862	320/70R20		23	1152.1	319	982	Tubeless	491	2946.4	34.1	44.3
6A06882	320/70R24		23	1251.9	319	1095	Tubeless	547.5	3276.6	37.3	52.8
6A07062	320/85R20		23	1360.8	319	1052.1	Tubeless	526	3149.6	34.9	49.7
6A07322	210/95R44		34	1397.1	214.9	1519.9	Tubeless	760	4597.4	31.8	59.1
6A07082	320/85R24		23	1496.9	319	1153.9	Tubeless	577	3454.4	38.9	58.6
6A07132	320/85R28		23	1596.6	320	1255	Tubeless	627.5	3759.2	41.3	62.8
6A08362	320/90R46		46	2993.7	320	1750.1	Tubeless	875	5250.2	41.3	103.9
6A07142	340/85R28		23	1750.9	342.9	1289.1	Tubeless	644.5	3860.8	42.1	72
6A07222	340/85R36		23	1995.8	342.9	1495	Tubeless	747.5	4495.8	42.9	88.6
6A07232	340/85R38		23	2059.3	342.9	1545.1	Tubeless	772.5	4648.2	42.9	90.3
6A06872	360/70R20		34	1850.7	357.1	1041.9	Tubeless	521	3098.8	39.7	56.8
6A06892	360/70R24		23	1496.9	357.1	1151.9	Tubeless	575.9	3454.4	41.3	62.8
6A06932	360/70R28		23	1651.1	357.1	1255	Tubeless	627.5	3759.2	42.1	70.3
6A06902	380/70R24		23	1651.1	380	1190	Tubeless	595	3556	43.7	70.5
6A07302	230/95R32		58	1796.2	230.1	1255	Tubeless	627.5	3784.6	31.8	51.8
6A06942	380/70R28		23	1750.9	380	1293.1	Tubeless	646.6	3886.2	43.7	76.2
6A07172	380/85R30		23	2177.2	381	1407.2	Tubeless	703.6	4216.4	43.7	86.5
6A07242	380/85R38		23	2431.3	380	1611.1	Tubeless	805.6	4851.4	43.7	106.4
6A06912	420/70R24		23	1896	418.1	1247.9	Tubeless	624	3733.8	42.9	82.2
6A06952	420/70R28		23	2059.3	418.1	1351	Tubeless	675.5	4038.6	42.9	91.5
6A06972	420/70R30		23	2122.8	418.1	1400	Tubeless	700	4191	43.7	97.6
6A07112	420/85R24		23	2304.2	418.1	1324.1	Tubeless	662.1	3937	42.9	97
6A05712	420/85R28		23	2431.3	419.1	1424.9	Tubeless		4267.2	46	100.6
6A07252	420/85R38		23	2789.6	419.1	1678.9	Tubeless	839.5	5054.6	47.6	131.6
6A06732	440/65R24		35	1796.2	444.5	1184.9	Tubeless	592.5	3530.6	39.7	80.4
6A07332	230/95R44		58	1995.8	230.1	1560.1	Tubeless	780	4724.4	33.3	65.1
6A06752	440/65R28		35	1950.4	444.5	1285.2	Tubeless	642.6	3860.8	41.3	90.3
6A06922	460/70R24		46	3560.7	460	1260.1	Tubeless	630	3759.2	37.3	92.5
6A06742	480/65R24		35	2059.3	480.1	1234.4	Tubeless	617.2	3683	41.3	92
6A06762	480/65R28		35	2649	480.1	1336	Tubeless	668	4013.2	41.3	102.1
6A06962	480/70R28		23	2503.8	480.1	1424.9	Tubeless	712.5	4267.2	46	114
6A06982	480/70R30		23	2576.4	480.1	1480.8	Tubeless	740.4	4419.6	43.7	126.4
6A06992	480/70R34		23	2721.6	480.1	1579.9	Tubeless	789.9	4749.8	46.8	141.4
6A07002	480/70R38		23	2903	480.1	1685	Tubeless	842.5	5054.6	49.2	152.9
6A06562	480/80R42		23	3447.3	485.1	1844	Tubeless	922	5537.2	51.6	178.7
6A07352	230/95R48		58	2240.7	230.1	1659.9	Tubeless	829.9	5029.2	35.7	72.3
6A08332	480/80R46		46	4989.5	485.1	1945.6	Tubeless	972.8	5834.4	52.4	191.4
6A07012	520/70R38		23	3356.6	515.6	1750.1	Tubeless	875	5257.8	52.4	177.5
6A05792	520/85R38		23	3878.2	515.6	1849.1	Tubeless	924.6	5537.2	54.8	190.2
6A07282	520/85R42		23	4127.7	515.9	1955	Tubeless	977.5	5867.4	56.4	216.9
6A06772	540/65R28		35	3243.2	551.2	1419.9	Tubeless	709.9	4241.8	45.2	128.8
6A07022	580/70R38		23	3878.2	579.1	1831.3	Tubeless	915.7	5486.4	54.8	207.7
6A06782	600/65R38		35	4377.2	594.4	1750.1	Tubeless	875	5257.8	46	193.1
6A08132	600/70R30		34	4241.1	563.9	1605.3	Tubeless	802.6	4775.2	53	192.9
6A07032	620/75R30		35	4853.4	629.9	1694.2	Tubeless	847.1	5029.2	57.9	242.9
6A06792	650/65R38		34	4853.4	650.2	1819.9	Tubeless	910	5461	57.2	254.5
6A06802	240/70R16		34	898.1	246.4	744.2	Tubeless	372.1	2235.2	27.8	21.4
6A07042	650/75R32		46	6304.9	650.2	1795.8	Tubeless	897.9	5334	58.7	266.8
6A08142	710/70R38		34	6168.9	708.7	1958.3	Tubeless	979.2	5867.4	57	305.1
6A08342	750/65R26		34	5307	754.4	1640.8	Tubeless	820.4	4920	50	246.8
6A06812	260/70R16		34	1029.7	260.1	769.6	Tubeless	384.8	2311.4	29.4	23.5
6A07312	270/95R32		58	2240.7	275.1	1329.9	Tubeless	665	4013.2	38.9	64.9

FSTR is container only.
Tires in this product line will remain Carlisle branded until further notice
