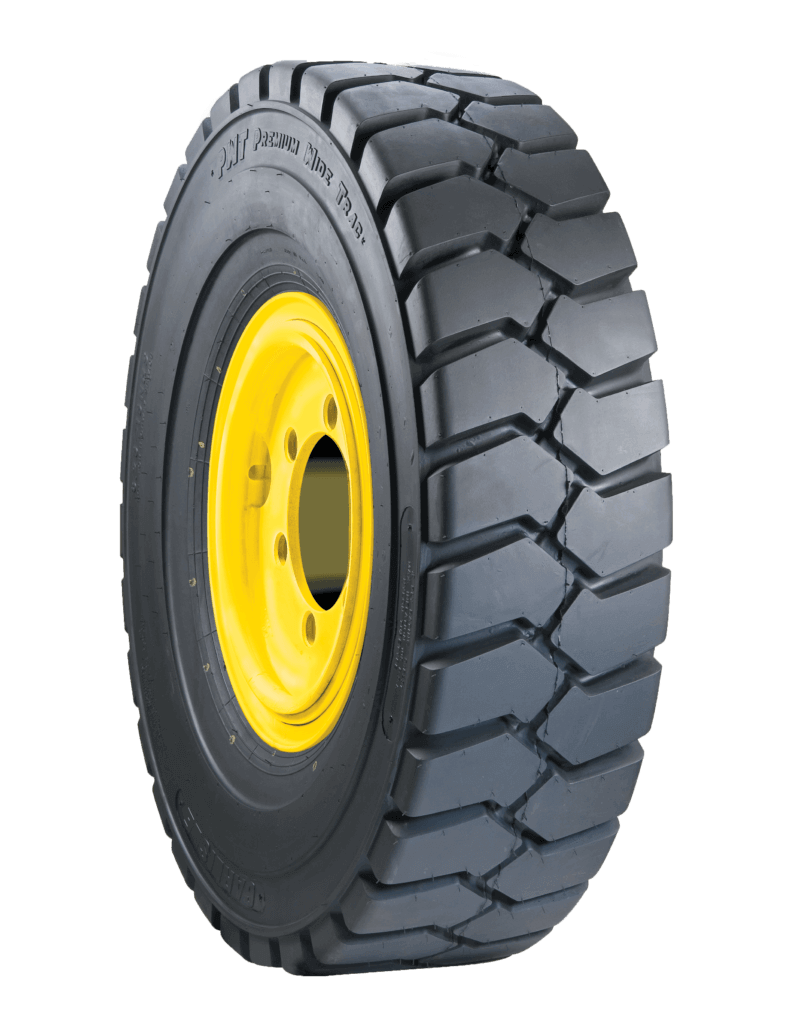

Premium Wide Trac
Compaction and Road Paving Equipment | Material Handling | Mining

Premium Wide Trac

Best used for

Compaction and Road Paving Equipment

The Premium Wide Trac tire offers superior level design with an extra heavy-duty sidewall for material handling applications. Its durable construction resists abrasions in sever conditions to maximize efficiency.



Product Highlights:

  • Extreme square shoulder
  • Flat, wide profile
  • Increased gauge

Technical Specifications

Select Sizes
Choose size...
Select Sizes
SKUSizePlyMounted diameter (in)Mounted width (in)Rim Width (in)Rated load (lb)Rated SpeedPSITread DepthWeight (lb)Additional Information
601185.70/5.00-8 (TT)818.55.5319301012017 /3215
601225.70/5.00-8 (TT)1018.55.5323401015017 /3215.5
601106.90/6.00-9 (TT)1022.26437151012532 /3228.6
601166.50-10 (TT)1023.87.1542251011532 /3237.8
601117.00-12 (TT)1227.37.5559951012532 /3251.5
601218.25-15 (TT)1433.69.86.593851012024 /3285.4
6011928x9.00-15 (TT)1227.38.8768801012018 /3252.7
6012028x9.00-15 (TT)1427.38.9775301014018 /3253.5
601232.50-15 (TT)1829.19.17.5101001015024 /3270.4
601243.00-15 (TT)2032.711.38145001013526 /32120
601257.50-16 (TT)1232.38.5680001011522 /3257.1
SKUSizePlyMounted diameter (mm)Mounted width (mm)Rim Width (mm)Rated load (kg)Rated SpeedPSITread DepthWeight (kg)Additional Information
601185.70/5.00-8 (TT)8469.9139.776.216.112017 /32
601243.00-15 (TT)20830.6287203.216.113526 /32
601257.50-16 (TT)12820.4215.9152.416.111522 /32
601225.70/5.00-8 (TT)10469.9139.776.216.115017 /32
601106.90/6.00-9 (TT)10563.9152.4101.616.112532 /32
601166.50-10 (TT)10604.5180.312716.111532 /32
601117.00-12 (TT)12693.4190.512716.112532 /32
601218.25-15 (TT)14853.4248.9165.116.112024 /32
6011928x9.00-15 (TT)12693.4223.5177.816.112018 /32
6012028x9.00-15 (TT)14693.4226.1177.816.114018 /32
601232.50-15 (TT)18739.1231.1190.516.115024 /32
Unless otherwise noted, load limits listed are for the Load Wheel on Counterbalanced Lift Trucks.
Tire load limits will be lower if used on continuous service Industrial Vehicles.
Flap is included for these tube type (TT) tires.
Tires in this product line will remain Carlisle branded until further notice
