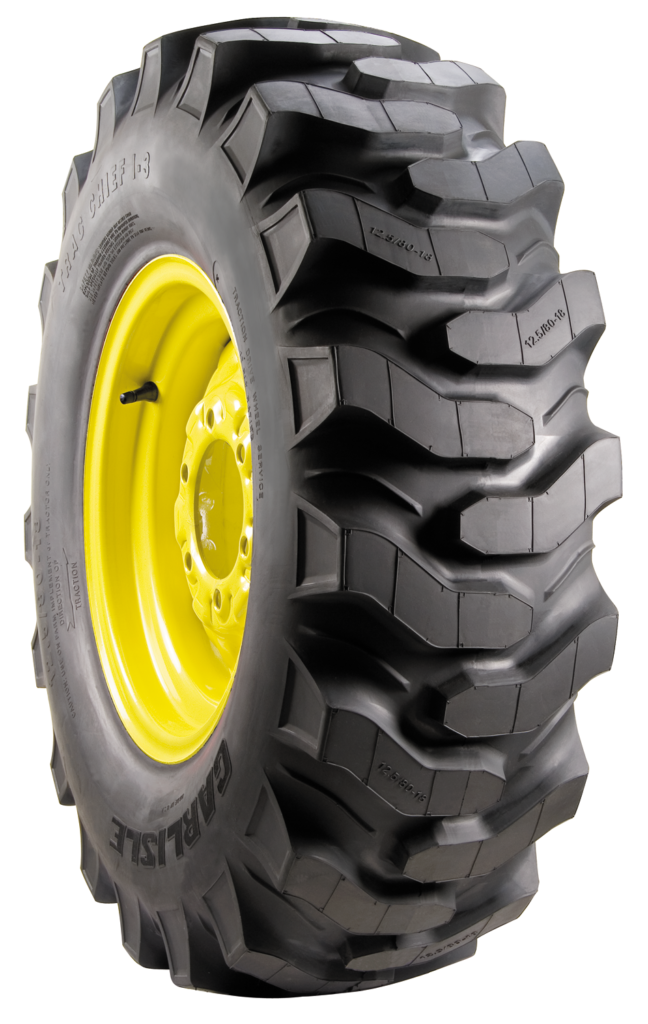

Trac Chief® I-3
Balers | Farm Implements | Feed Yard Mixers | Front Tractor | Seeders | Spreaders | Wagons

Trac Chief® I-3

Best used for

Balers
Farm Implements
Feed Yard Mixers
Front Tractor
Seeders
Spreaders
Wagons

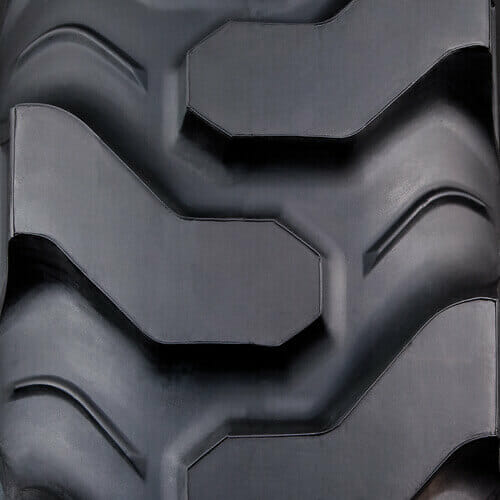

Designed for traction on implements and backhoes, the Trac-Chief I-3 tire delivers diverse capabilities of aggressive and durable traction on soft surfaces while still providing a smooth ride. It’s directional tread design and high load capacity brings stability and easy steering for front wheel tractor applications and backhoe loaders. Made in the USA.



Product highlights:

  • Heavy-duty tread compounds for puncture resistance
  • Square shoulder for increased stability
  • High void ratio to prevent soil compaction

Technical Specifications

Select Sizes
Choose size...
Select Sizes
SKUSizePlyLoad IndexPSIRated load (lb)Approved RimMounted width (in)Mounted diameter (in)Tube TypeStatic Load RadiusRolling Circumference (in)Tread DepthWeight (lb)Additional Information
570122^12.4-166110A83023401613.337.4Tubeless17.3111.230 /3281.8
57012010.5/80-1810N/A5438401810.835.6Tubeless16.2105.529 /3270.2
57012112.5/80-1812139A85553601812.538.5Tubeless17.5114.631 /3295.7
SKUSizePlyLoad IndexPSIRated load (kg)Approved RimMounted width (mm)Mounted diameter (mm)Tube TypeStatic Load RadiusRolling Circumference (mm)Tread DepthWeight (kg)Additional Information
570122^12.4-166301061.4406.4337.8950Tubeless439.42824.523.837.1
57012010.5/80-1810541741.8457.2274.3904.2Tubeless2679.72331.9
57012112.5/80-1812552431.3457.2317.5977.9Tubeless2910.824.643.4
^Tires will remain Carlisle branded until further notice
