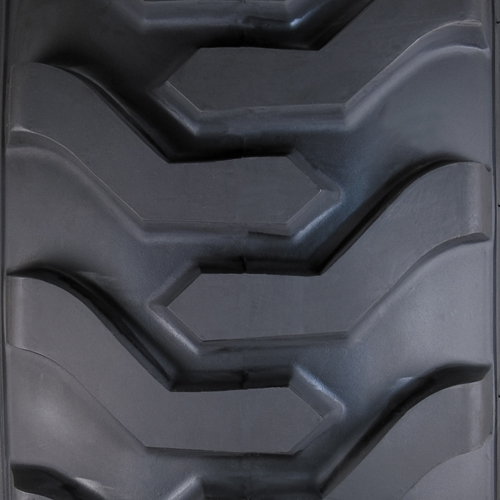

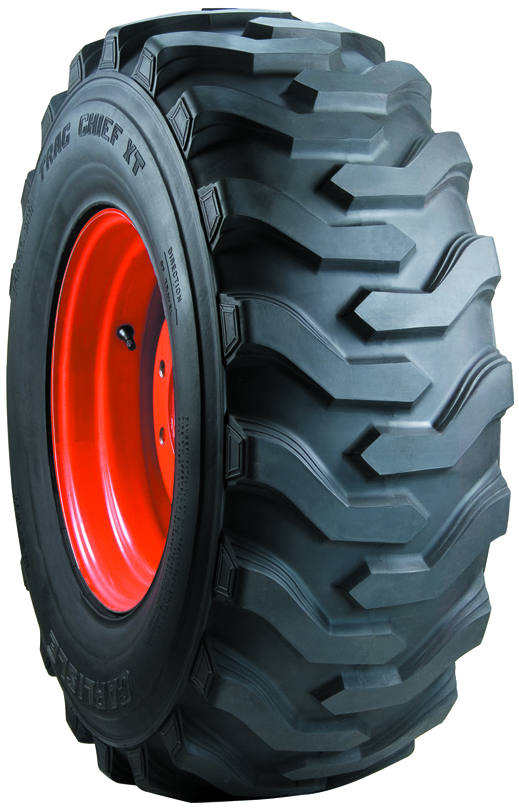

The Trac Chief® XT is for use on skid steer, backhoe, compact tractor, aerial work platform lifts and three wheel rough terrain forklifts in general purpose applications. It features a rugged tread compound, nylon cord construction and flat profile for increased traction, stability and tread life.
Other features include a rim guard that protects the tire bead against damage from foreign material/debris.
Trac Chief ® is container only.
| SKU | Size | Ply | Load Index | PSI | Rated load (lb) | Approved Rim | Mounted width (in) | Mounted diameter (in) | Tube Type | Static Load Radius | Rolling Circumference (in) | Tread Depth | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5701401 | 10-16.5 | 10 | 134A2 | 75 | 4680 | 16.5 | 10.8 | 30.7 | Tubeless | 13.9 | 93 | 21 /32 | 51.6 | |
| 5701411 | 12-16.5 | 12 | N/A | 80 | 6320 | 16.5 | 12.8 | 32.8 | Tubeless | 14.9 | 99 | 23 /32 | 69 |
| SKU | Size | Ply | Load Index | PSI | Rated load (kg) | Approved Rim | Mounted width (mm) | Mounted diameter (mm) | Tube Type | Static Load Radius | Rolling Circumference (mm) | Tread Depth | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5701401 | 10-16.5 | 10 | 75 | Tubeless | ||||||||||
| 5701411 | 12-16.5 | 12 | 80 | Tubeless |
*“AT” tires are Star Rated and are designed for ATV applications
*Sizes with asterisks have the Radial Trail RH tread pattern
Tires in this product line will remain Carlisle branded until further notice
Trac Chief ® is container only.
