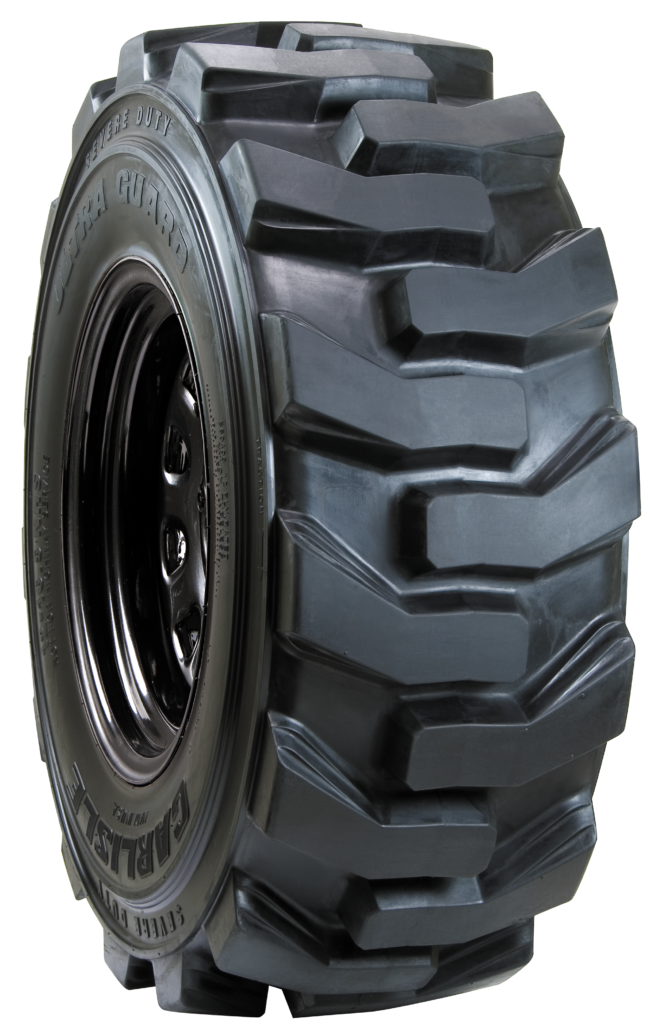

Engineered for severe service skid steers, the Ultra Guard tire is engineered with an open shoulder design displaying a lug void essential for abrasive surface conditions. Its extra deep 44/32” tread depth provides a 70% increase depth than other premium skid steer products. With a tread yielding a 14% increased tire life and a thick sidewall buff bar for extra protection, the Ultra Guard tire is proven for absolute durability. Made in the USA.
Product highlights:
| SKU | Size | Ply | Mounted width (in) | Mounted diameter (in) | Rim Width (in) | Rated load (lb) | Rolling Circumference (in) | PSI | Tube Type | Weight (lb) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 560402 | 10.00-16.5 | 10 | 10.4 | 30.4 | 8.3 | 4710 | 92.4 | 75 | Tubeless | 80 | |
| 560403 | 12.00-16.5 | 12 | 12.1 | 32.7 | 9.8 | 6320 | 99 | 80 | Tubeless | 100 |
| SKU | Size | Ply | Mounted width (mm) | Mounted diameter (mm) | Rim width (mm) | Rated load (kg) | Rolling Circumference (mm) | PSI | Tube Type | Weight (kg) | Additional Information |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 560402 | 10.00-16.5 | 10 | 264.2 | 772.9 | 209.6 | 2136.4 | 2347 | 75 | Tubeless | 36 | |
| 560403 | 12.00-16.5 | 12 | 307.3 | 831.3 | 247.7 | 2866.7 | 2514.6 | 80 | Tubeless | 46 |
*“AT” tires are Star Rated and are designed for ATV applications
